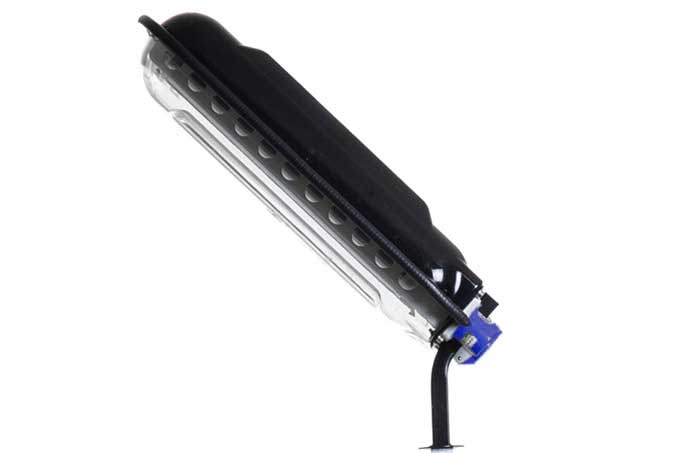

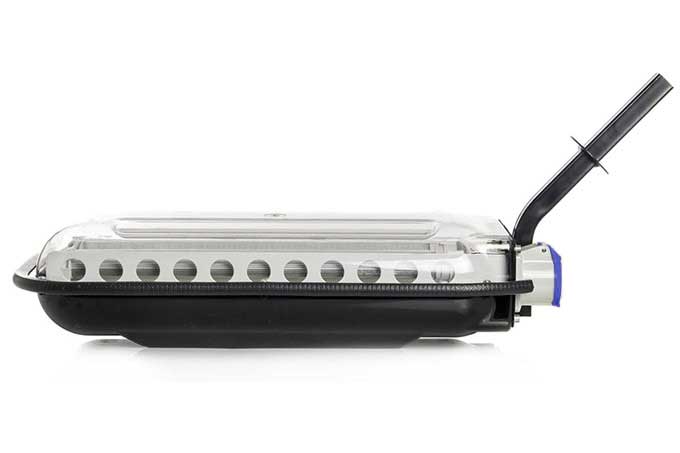

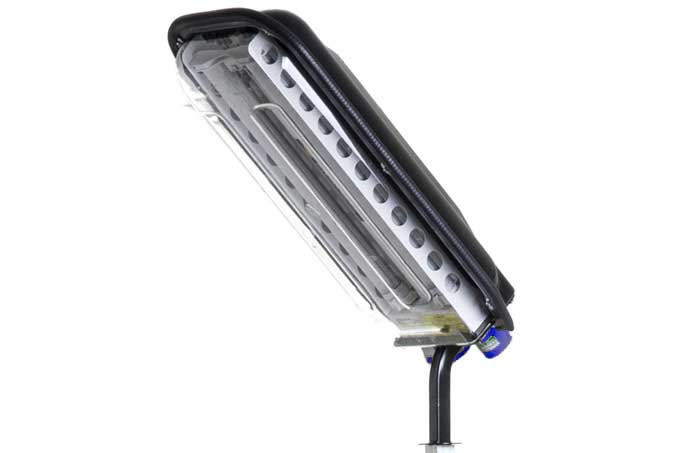

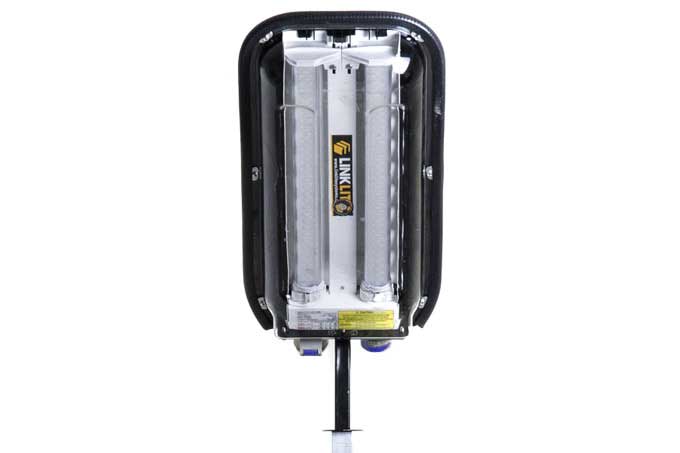

Linklite LED 240V

Model #: LL-LED-240V

Lighting long stretches of road, rail track or tunnel is now easier and more affordable than ever with the Linklite LED temporary lighting system.

Complies withCERCM


Robust Lighting for Demanding Work Sites

Our heavy-duty linkable floodlights are daisy chained together to provide powerful LED lighting for large-scale engineering projects.

Proven Portable Lighting Solutions

Used daily on major infrastructure works, Linklite is essential for site workers who need reliable floodlighting to get the job done.

Solve Your Long Distance Lighting Headaches

Whether your work site spans metres or miles, avoid expensive, bulky lighting equipment and reap the benefits of using super efficient Linklite LEDs on your next project.

Powerful Floodlights with Enormous Energy Savings

With incredible cost savings of over 80% compared with tower lights, Linklite LED is the most cost effective way to brighten your work site.

Linklite - Trusted by the Biggest Names in the Industry

Don't take our word for it.

They say actions speak louder than words...
these customer videos say more than we ever could.

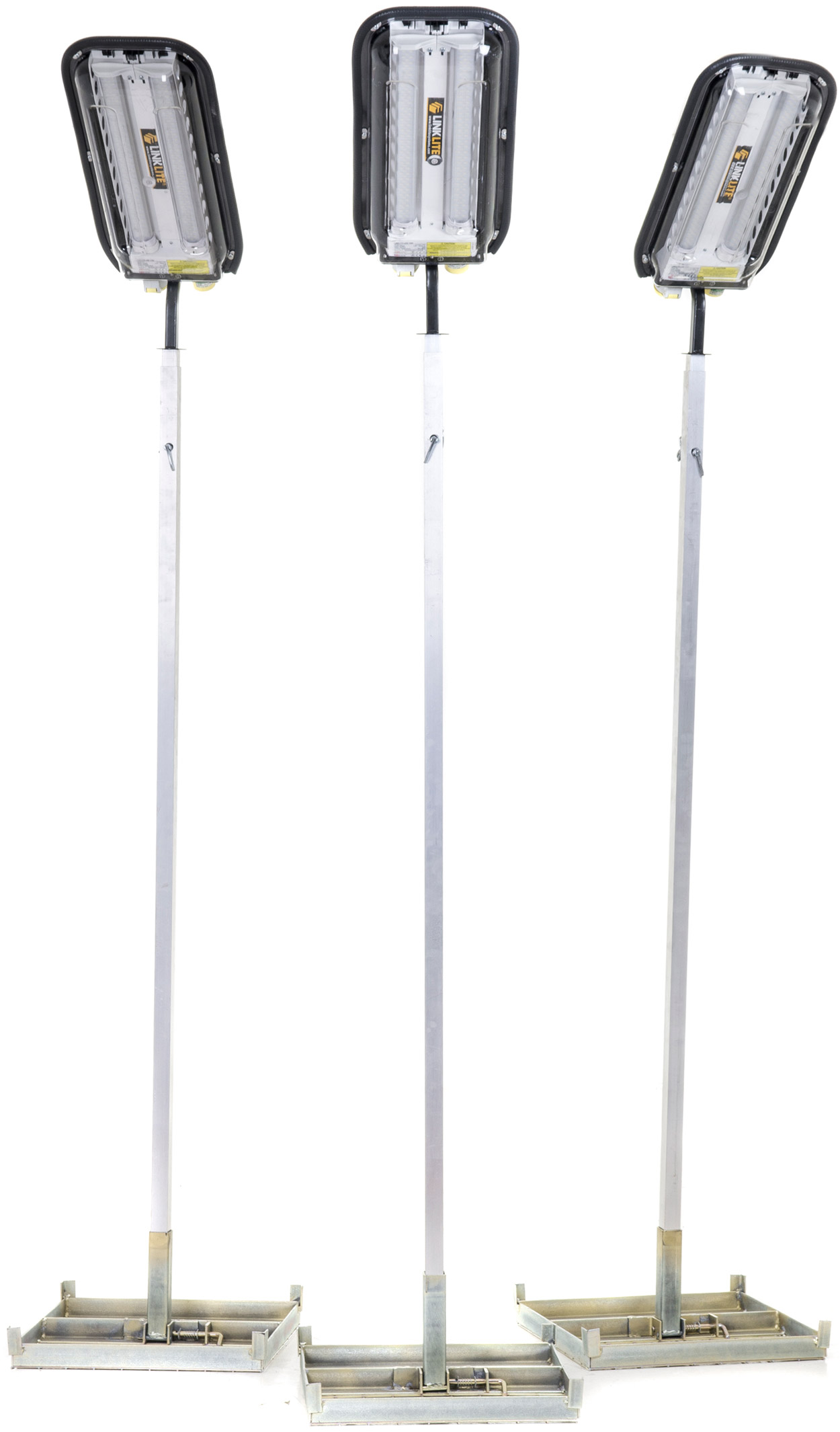

Go Further with Linklite LED

Linklites can be connected together to illuminate up to 500 metres of rail track, road, or tunnel from a single 2kVA generator.

Temporary lighting can be a complicated and costly aspect for many engineering projects, especially if your scheme spans several hundred metres - or even miles.

With Linklite LED it's possible to deliver clear, bright floodlighting to large-scale work sites using a single power source.


Features & Benefits

  • Ultra Bright High Power LED Lamps
  • Linkable for Long Distance Work
  • Lightweight & Stackable
  • Wall or Mast Mountable
  • IP44 Wet Location Rated
  • Cool / Daylight Colour Temperature
  • Heavy Duty Protective Lens Casing

Save over 80% in running costs

Compared to a standard 4000W light tower, a string of Linklites will light the same distance for less than one fifth of the running cost.

Find out how much you could save by switching to Linklite.

This tool will help you calculate the number of Linklites required to floodlight the same distance as your existing lighting equipment.

What you'll need to get started:

  • The Wattage of your equipment
  • The linear distance covered by your existing equipment
  • The length of your work site

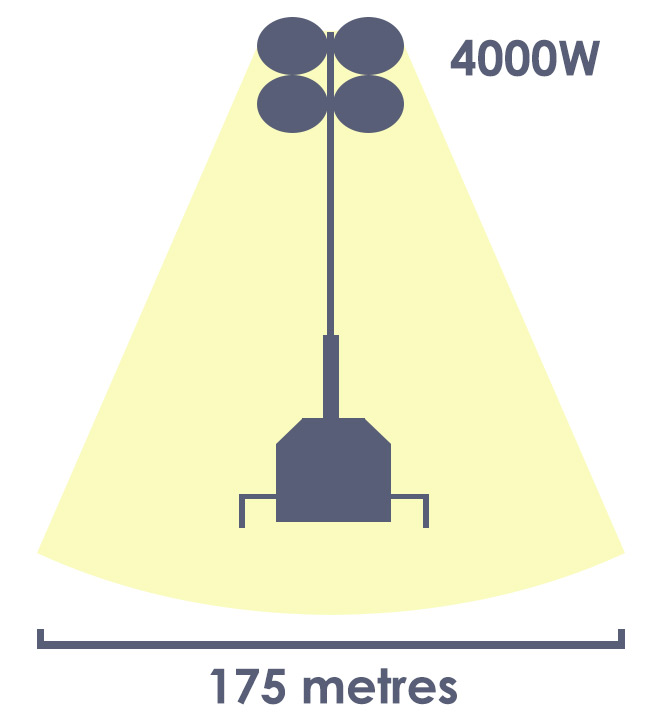

For example an average light tower uses 4000W and is capable of illuminating a linear distance up to 175 metres.

Light Tower Spread

4,000W
  500W 10,000W
175 m
  100 m 300 m
400 m
  0 m 1,000 m
$1.35 (per litre)
  $0.50 $2.00

0

$0 per hour

0

$0 per hour

0%

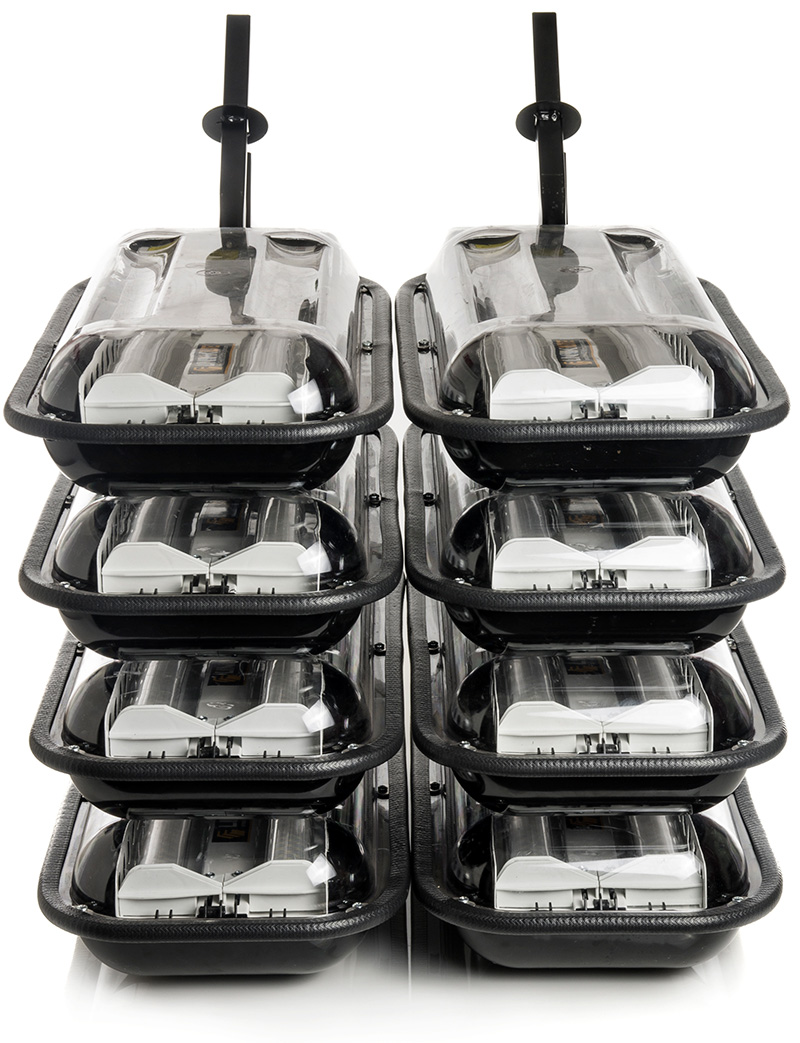

Linklite LED stacked front

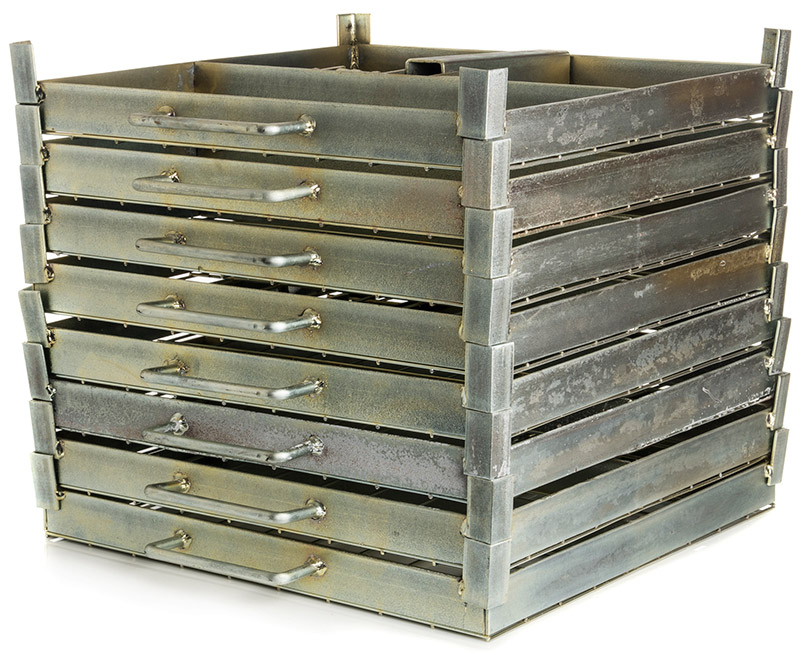

Linklite baskets stacked

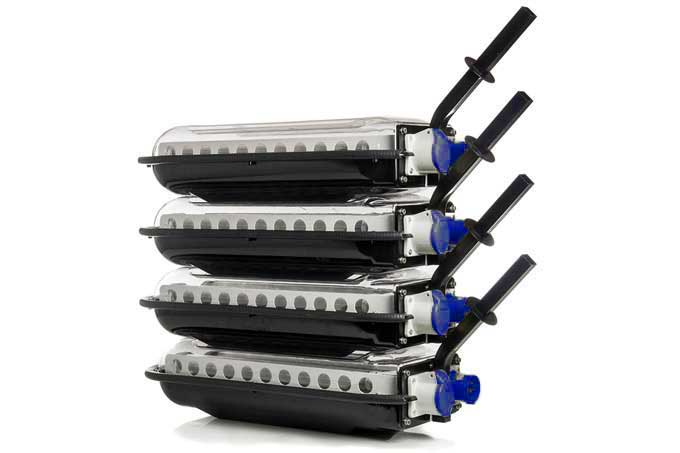

Stackable Components

The luminaire, telescopic mast and steel basket all detach and stack for easy transportation and convenient storage.

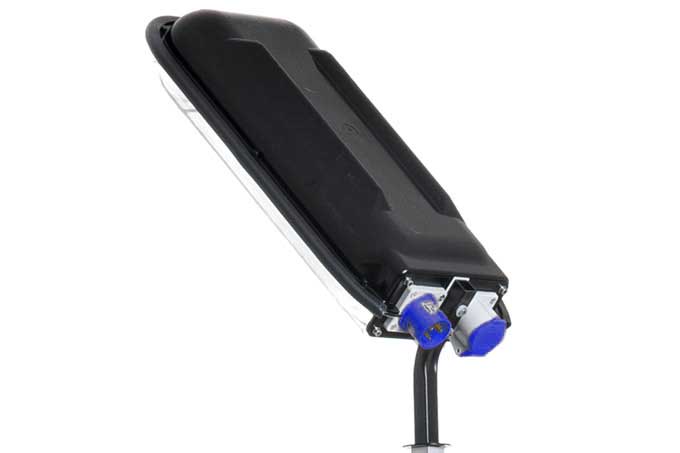

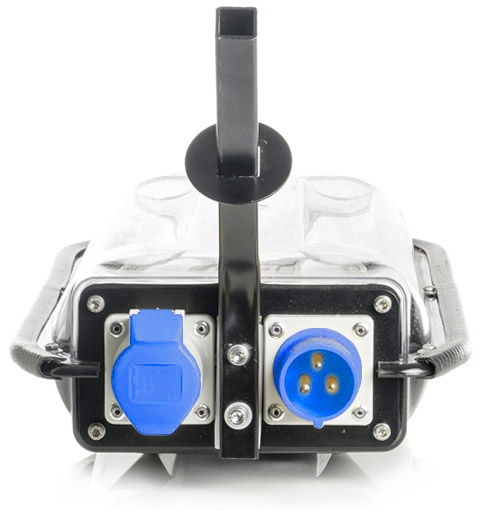

Linklite LED rear

Water, dust and shock resistant

Linklite features industry standard 240V 16A IP44 pin and sleeve connections which are wet location rated for outdoor use.

Combined with our highly durable polycarbonate lens casing, Linklite is also dust and shock resistant making it the ideal choice for construction site lighting.


Specifications

Rated Voltage 240V
Rated Wattage 30W
Rated Current 0.28A
IP Rating IP44
Lamp Lumens 4000
Lamp CCT 6500K
Plug / Connector IEC 60309
Luminaire length 54.6 cm
Luminaire width 27.3 cm
Luminaire height 13.5 cm
Luminaire weight 3.3 kg
Complies with AS/NZS 60598.1:2013
AS/NZS 60598.2.4:2005 +A1
IEC 60598-2-4:1997 / EN 60598-2-4:1998
IEC60598-1:2014 / EN 60598-1:2015
IEC/EN 62031:2008 + A1:2013
EN 62741:2008

Downloads

Name Size
Data Sheet (PDF) 318 KB Download
Photometric (IES/LDT) 11 KB Download
ASA Approval Certificate (PDF) 161 KB Download

Accessories

240V Link Cable LL-CAB45-240V 240V Link Cable
Aluminium Mast LL-MST-AL Aluminium Mast
Basket Base Stand LL-BSK Basket Base Stand
Ground Spike LL-GS Ground Spike
